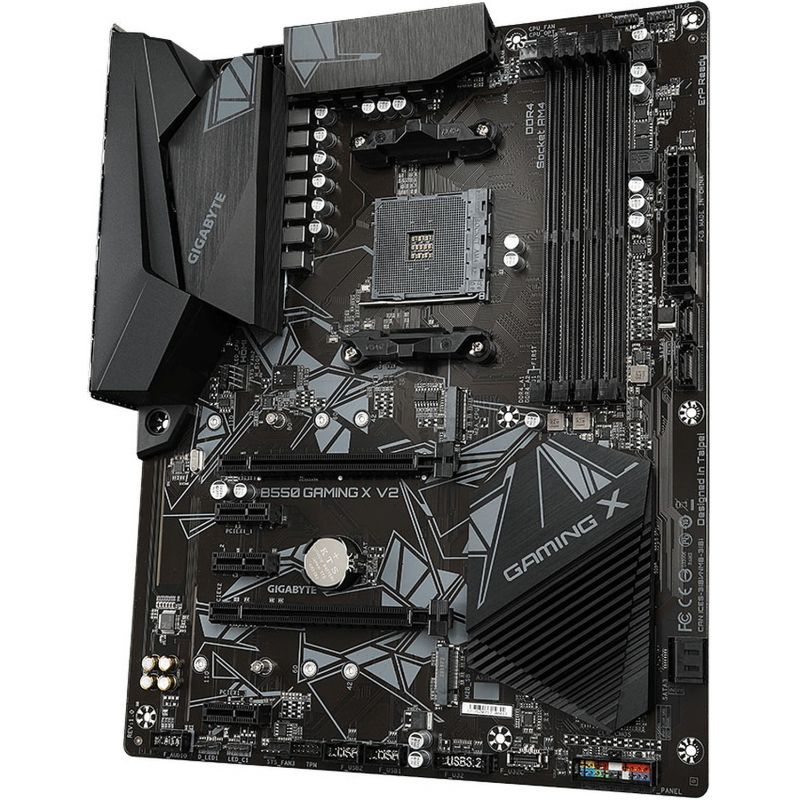

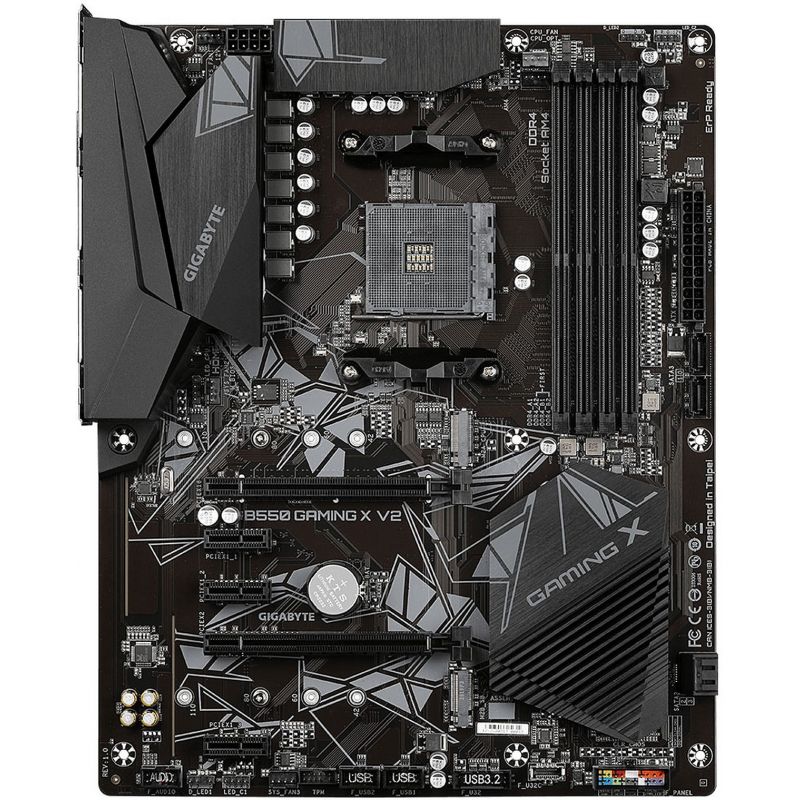

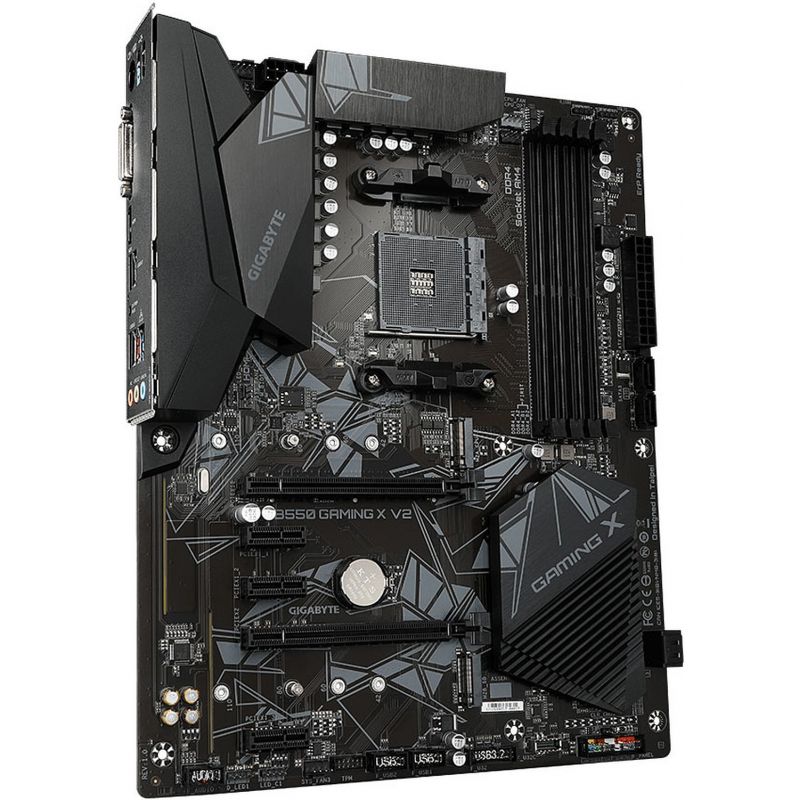

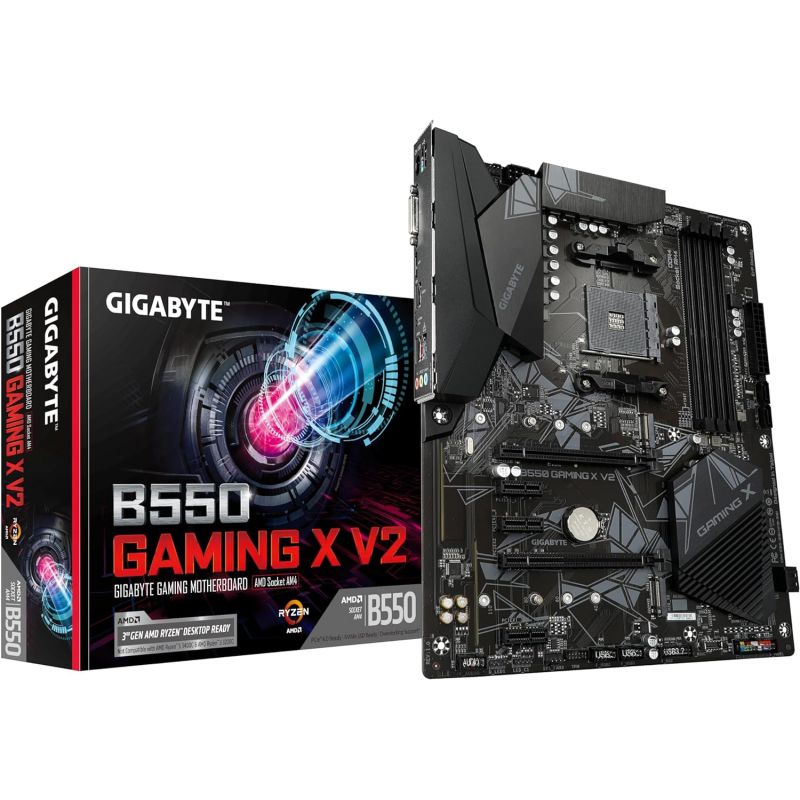

GIGABYTE B550 GAMING X V2

1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

1. AMD B550

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. 3rd Gen AMD Ryzen™ Processors:
   Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
   Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1. Supporting PCIe 3.0 x2 mode

1. Supporting PCIe 3.0 x1 mode

1. iTE® I/O Controller Chip

1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel

1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2. 3 x USB 3.2 Gen 1 ports on the back panel

1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Ports interne E/S

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 1 x CPU cooler LED strip/RGB LED strip header
9. 2 x M.2 Socket 3 connectors
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
17. 1 x Clear CMOS jumper

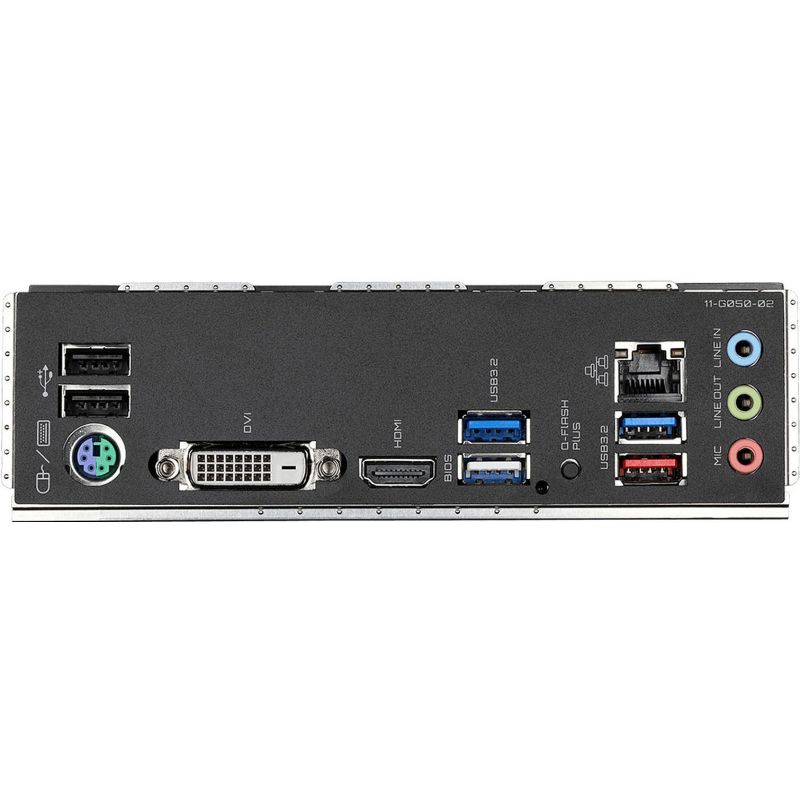

Ports arrière E/S

1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 3 x USB 3.2 Gen 1 ports
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 3 x audio jacks

BIOS

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for Windows 10 64-bit

1. ATX Form Factor; 30.5cm x 24.4cm
