Accueil>Composants>Carte mère>pour CPU AMD>Socket AM4>Gigabyte B550M S2H

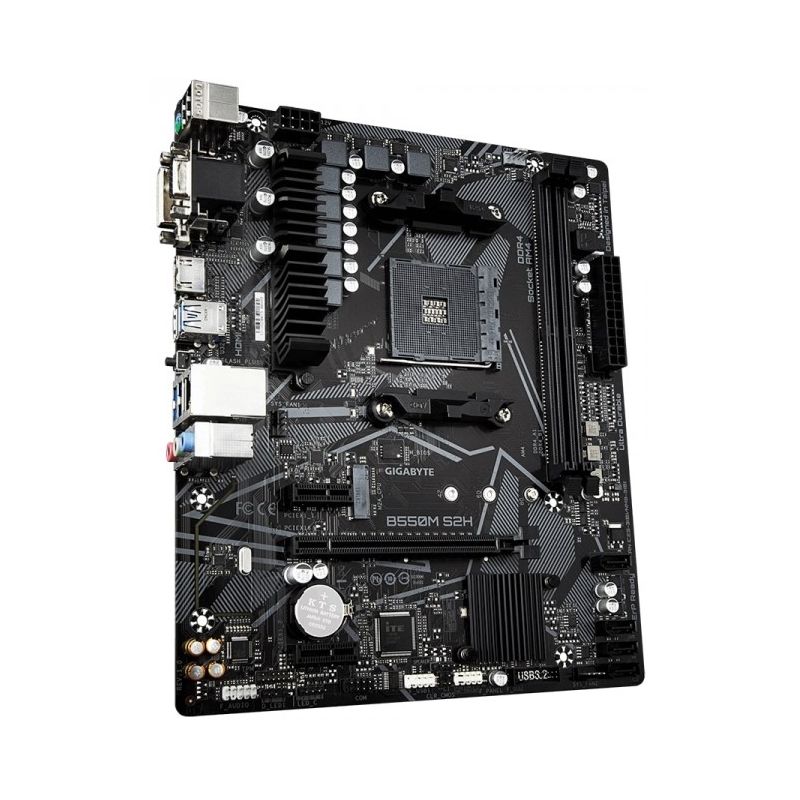

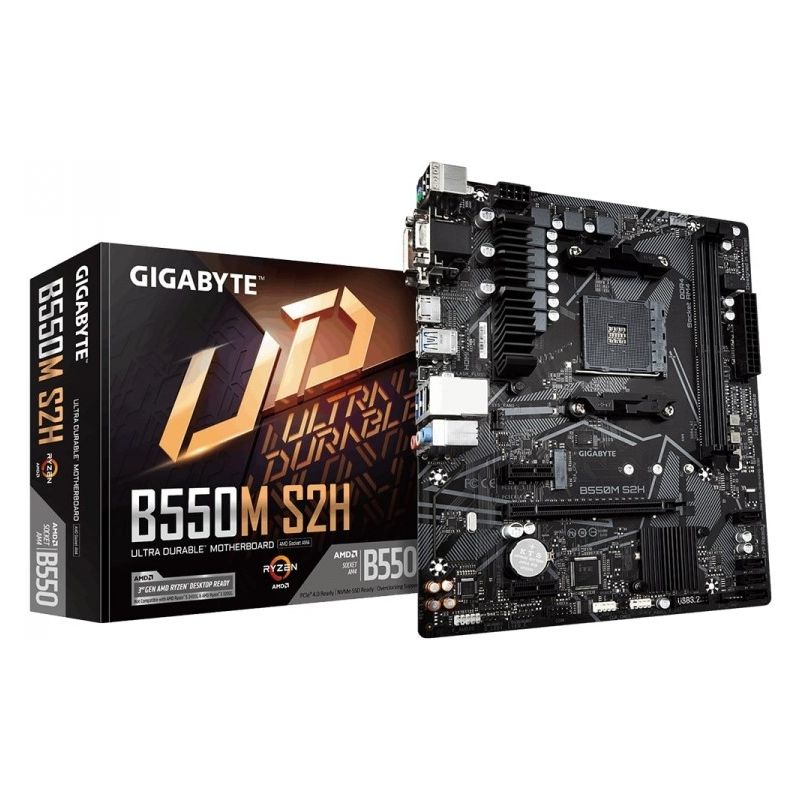

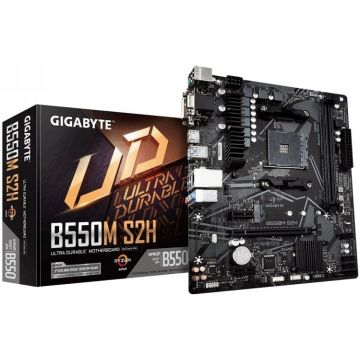

Gigabyte B550M S2H

  • Socket AM4, 2x DDR4,DVI-D / HDMI / VGA
  • 1G LAN, M.2, SATA III, USB 3.2, PS/2
  • Carte mère micro-ATX

Plus de détails...

102,90 €

dont 0,02 € d'éco-participation

CM-AM2-5

4719331809591

Neuf

Produit créé: 2020-08-25 15:16:20 - Mis à jour: 2023-08-06 13:27:38

Disponibilité : Sur commande. pour le délai contactez-nous !

Fiche ProduitGIGABYTE B550M S2H
Processeurs
  1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (Serie 2000 incompatible)
Chipset
  1. AMD B550
Mémoire
  1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  2. 3rd Gen AMD Ryzen™ Processors:
    Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  3. New Generation AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Graphique
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Ports d´extension
1‎ x PCI Express x16 slot, integrated in the CPU:
  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset:
  1. Supporting PCIe 3.0 x1 mode
Contrôleur d'Entrée/Sortie
  1. iTE® I/O Controller Chip
Réseau
  1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
Ports USB
Integrated in the CPU:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
  1. 2 x USB 3.2 Gen 1 ports available through the internal USB headers
  2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
Connectivités

Ports interne E/S

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  15. 1 x serial port header
  16. 1 x chassis intrusion header
  17. 1 x Clear CMOS jumper

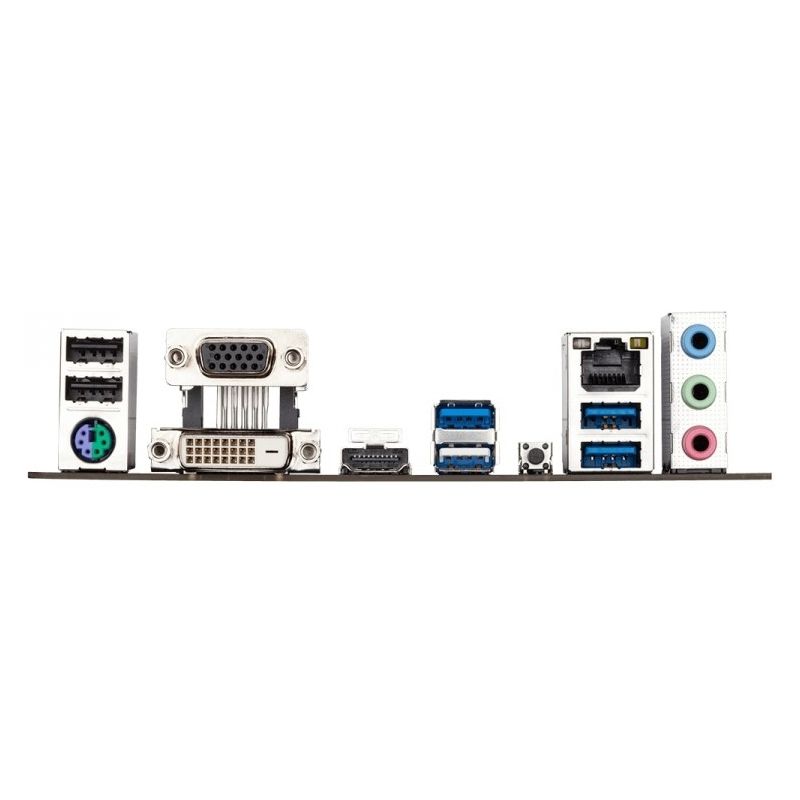

Ports arrière E/S

  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Système d´exploitation
  1. Support for Windows 10 64-bit
Format
  1. Micro ATX Form Factor; 24.4cm x 20.5cm
